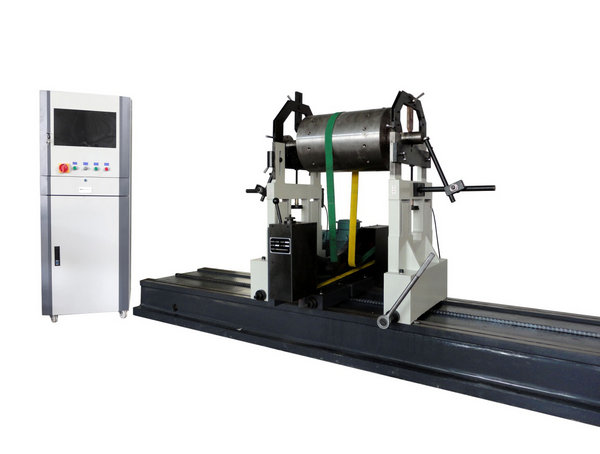

1. YYQ series product introduction YYQ series is the belt drive drive universal hard support horizontal double-sided dynamic balancing machine, so the model comprehensive measurement range from tens of grams to 10000 kg. Suitable for balancing the motor rotor, roller (either with or without shaft head but without shaft head bigger diameter roller need to customize the institutions), shaft, machine tool spindle rules such as cylindrical rotor balance, balance above kinds parts without tooling, installation fast and convenient equipment measuring accuracy, higher precision is balanced with a universal joint machine; With the suitable jig can also balance the fan, pulley and other parts. Products are widely used in motor, generator, fan, engine, agricultural machinery, textile machinery, chemical, woodworking machinery, papermaking machinery and other industries, can be on one side, two sides and a number of correction surface balance measurement, suitable for shaft, disc and center of gravity overhanging rotor. It has the advantages of high efficiency, accurate precision, intuitive display and reliable quality. 2. Measurement system Taiwan industrial control computer, 19 inch LCD (can be customized with touch screen), Windows operating platform ★ with the company's independent development of balance measurement system. General software functions cover all the functions of the domestic mainstream balancing machine software, the operation of all the use of Chinese menu structure, operating steps text prompt; Special software includes: all kinds of automatic balancing machine software, with the function of Angle tracking software, with the function of automatic positioning software, transmission shaft multi-axis joint school software ★ measuring system performance is strong: arbitrary workpiece calibration, measuring speed range wide 80 RPM starting, measuring speed block, unbalance amplitude and phase stability, high deweighting rate and separation ratio, high sensitivity ★ software with allowable unbalance calculator, the operator only needs to input the allowable vibration of the workpiece precision level, mass, working speed, and radius click to calculate the number of grams of allowable remaining unbalance of the workpiece ★ software completely independent development, according to customer requirements to modify or add software functions (such as scanning the two-dimensional code to add the workpiece identity name to the measurement results to save for future quality investigation) 3. Mechanical parts and controls ★ swing drive and bed casting, enough rigidity and stability; Swing driving resistance to static pressure is strong, under the premise of sufficient device driving capacity can generally overload more than 30% ★ the roller on the balance machine is made of bearing steel, the overall salt bath quenching hardness reached HRC55 above; After grinding the support surface of the roller, the radial run-out is small and the precision roller bearing is matched to make the workpiece run more smoothly and the interference to the measurement signal is lower ★ swing frame can move along the bed and can be parked in any part of the bed above, so the equipment can balance between the longest and the shortest arbitrary length of the workpiece. ★ the belt drive assembly can also be moved along the bed, convenient to drag the appropriate parts according to the workpiece. ★ reliable quality of equipment, the use of frequency conversion speed control system, motor soft start soft stop on the impact of the equipment is small, extended the service life of the equipment. Equipment can work continuously, maintenance is simple and convenient Note: please contact us for more information about the equipment  Manufacturer standard configuration parameters Equipment model yyq-1600a The workpiece mass range is 30-1600 kg Circle with drag diameter range mm 40-800 The maximum diameter of the workpiece is mm 1800 Two support spacing mm 150-2600 The length of the bed is mm 2900 Roller support shaft diameter mm 20-120 Balanced speed r/min drag at a diameter of 200mm 200-1450 stepless speed regulation Minimum residual unbalance ≤0.5 GMM /kg Unbalance reduction rate % ≥90% Motor power 7.5kw Speed regulation by frequency conversion Operating voltage three-phase four-wire AC 380V, 50/60hz  ★ the above is the factory standard configuration equipment parameters, we support the product, system according to the customer's demand for the maximum diameter of the equipment, the maximum effective length, the roller support workpiece shaft diameter range to do the equipment structure allows reasonable changes (such as can be expanded to 120-240) ★ if necessary equipment can be matched with electrical appliances for single-phase AC220V, 50/60hz power supply ★ the equipment can increase the axial independent braking device, to prevent the workpiece rotation balance due to the center of gravity in swing outside the risk ★ the device can add Angle tracking function ★ equipment can be added without affecting the measurement of performance of reasonable accessories, such as protection and weight removal device
